4400 Higher November 2006 Paper 4 Q11

EdexcelHigherOld spec5 marksTransformations of Shapes

11

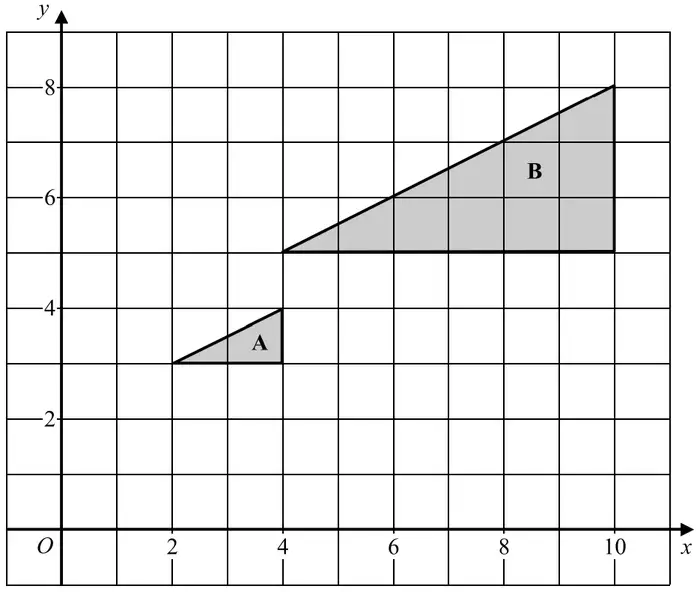

Grid with x from 0 to 11 and y from 0 to 9; triangle A with vertices (2, 3), (4, 3), (4, 4); triangle B with vertices (4, 5), (10, 5), (10, 8)
(a) Describe fully the single transformation which maps triangle A onto triangle B. (3)
(b) On the grid, translate triangle A by the vector \(\begin{pmatrix} -1 \\ 3 \end{pmatrix}\).
Label the new triangle C. (2)
