4400 Higher June 2007 Paper 3 Q4

EdexcelHigherOld spec5 marksTransformations of Shapes

4

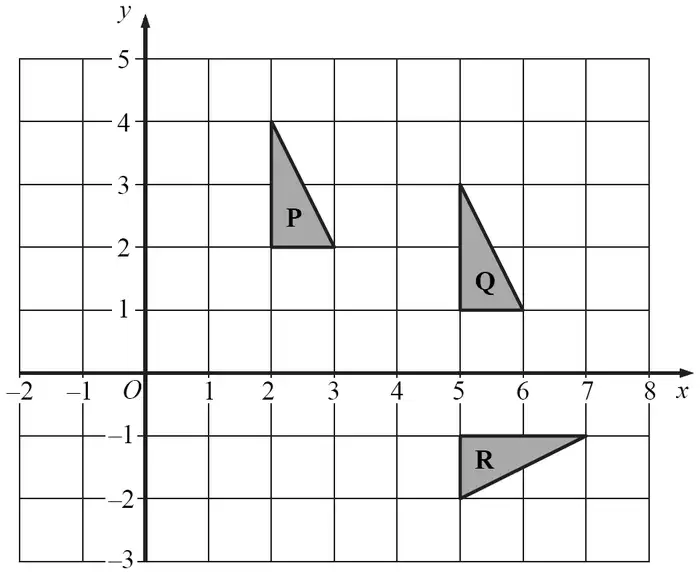

Grid with x from −2 to 8 and y from −3 to 5; triangle P with vertices (2, 2), (2, 4), (3, 2); triangle Q with vertices (5, 1), (5, 3), (6, 1); triangle R with vertices (5, −1), (5, −2), (7, −1)
(a) Describe fully the single transformation which maps triangle P onto triangle Q. (2)
(b) Describe fully the single transformation which maps triangle P onto triangle R. (3)
