4MA0 Foundation June 2015 Paper 2R Q5

EdexcelFoundationOld spec4 marksSimilar ShapesTransformations of Shapes

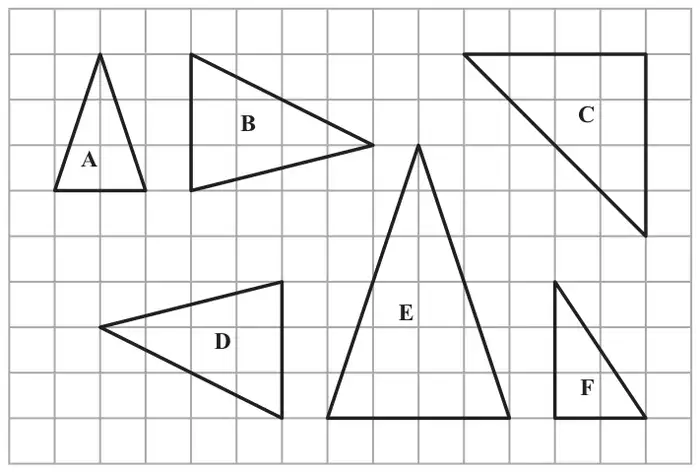

5 The diagram shows six triangles on a square grid.

Six triangles labelled A to F on a square grid
(a) Write down the mathematical name for triangle A. (1)
(b) Write down the letters of the two triangles that are similar but not congruent. (1)
(c) Triangle D can be mapped onto triangle B by a rotation.
(i) On the grid, mark with a cross (×) the centre of this rotation.
(ii) Write down the angle of this rotation.
(2)
