1MA0 Foundation November 2015 Paper 1 Q16

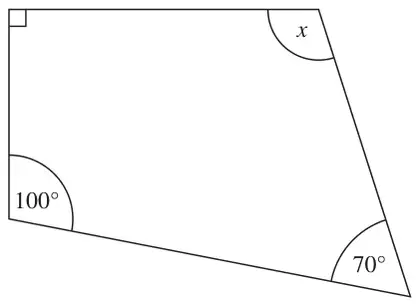

16 Here is a quadrilateral.
Diagram NOT accurately drawn
(*a) Explain why the angle marked \(x\) cannot be a right angle. (3)

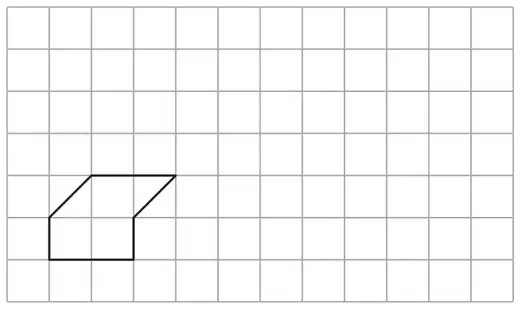

(b) On the grid below, show how the shape tessellates.
You should draw at least 6 shapes. (2)
You should draw at least 6 shapes. (2)
| Answer | Mark | Notes |
|---|---|---|
| Explanation | 3 | M1 for recognition of sum to \(360^\circ\) A1 for eg sum to 350 or subtraction to 100 or difference of 10 C1 (dep on at least M1) for correct explanation supported by their figures and working |
| Answer | Mark | Notes |
|---|---|---|
| Tessellation | 2 | B2 for at least 6 correct shapes (including the initial shape) correctly tessellating (B1 for at least 4 correct shapes, including initial shape, correctly tessellating ignore any additional sections attempted, gaps or incorrectly shaped tiles) |
