1MA0 Foundation June 2016 Paper 2 Q13

EdexcelFoundationOld spec6 marks2D Area & Perimeter Constructions

13 Tina is making a nest box for birds.

Tina has marked the six parts she needs on a piece of wood, as shown in the diagram below.

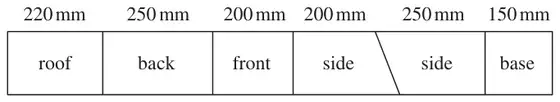

Piece of wood marked roof 220 mm, back 250 mm, front 200 mm, side 200 mm, side 250 mm, base 150 mm

Diagram NOT accurately drawn

(a) Work out the total length of the six parts. (2)

Tina is going to cut a circular hole in the front of the nest box.
She makes this accurate full size drawing to represent the hole.

(b) Measure the diameter of the hole. (1)

Here is a sketch of one side of the nest box.

Sketch of quadrilateral ABCD with right angles at A and B, AB = 150 mm, AD = 200 mm and BC = 250 mm

Diagram NOT accurately drawn

(c) In the space below, make an accurate scale drawing of this side of the nest box.
Use a scale of 1 cm to 20 mm.
The line AB has been drawn for you.

(3)
