1MA0 Foundation June 2015 Paper 2 Q7

EdexcelFoundationOld spec5 marksAngles (Including Parallel Lines)Constructions

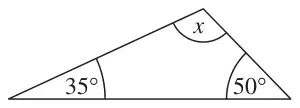

7 Here is a triangle.

Triangle with angles 35 degrees, 50 degrees and x

Diagram NOT accurately drawn

(a)
(i) Work out the size of the angle marked \(x\).
(ii) Give a reason for your answer. (2)

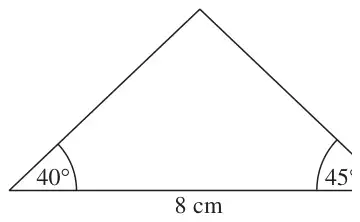

Here is a different triangle.

Triangle with base 8 cm and base angles 40 degrees and 45 degrees

Diagram NOT accurately drawn

(b) In the space below, make an accurate drawing of this triangle. (3)
