D1 June 2008 Q5

EdexcelOld spec11 marksFlows in Networks

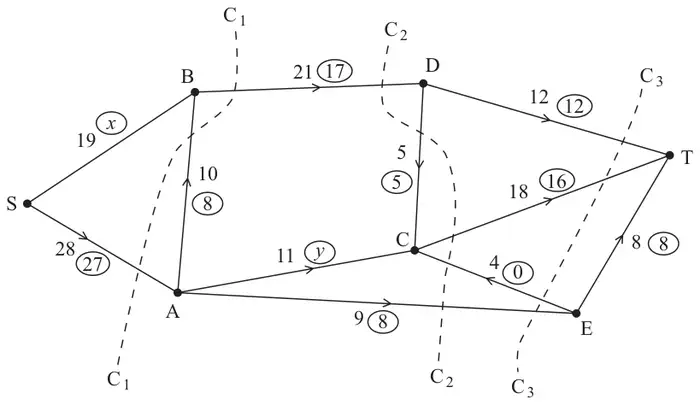

Figure 5: capacitated directed network of pipes from S to T with feasible flows in circles, including x and y, and cuts C1, C2, C3 — Figure 5

Figure 5 shows a capacitated, directed network of pipes. The number on each arc represents the capacity of that pipe. The numbers in circles represent a feasible flow.

(a) State the values of \(x\) and \(y\). (2)

(b) List the saturated arcs. (2)

(d) State the capacities of the cuts \(\text{C}_1\), \(\text{C}_2\), and \(\text{C}_3\). (3)

(e) By inspection, find a flow-augmenting route to increase the flow by one unit. You must state your route. (1)

(f) Prove that the new flow is maximal. (2)

Scheme	Marks
\(x = 9,\ \ y = 11\)	B1, B1
	(2)

Scheme	Marks
AC DC DT ET	B2, 1, 0
	(2)

Scheme	Marks
36	B1
	(1)

Scheme	Marks
\(\text{C}_1 = 49,\ \ \text{C}_2 = 48,\ \ \text{C}_3 = 39\)	B1, B1, B1
	(3)

Scheme	Marks
e.g. SAECT	B1
	(1)

Mark scheme (f)

Scheme	Marks
maximum flow = minimum cut cut through DT, DC, AC and AE	M1 A1
	(2)
	(11 marks)

Notes

(f) 1M1: Must have attempted (e) and made an attempt at a cut.

1A1: cut correct – may be drawn. Refer to max flow-min cut theorem three words out of four.
