Higher June 2025 Paper 1R Q10

EdexcelCurrent spec3 marksPrisms

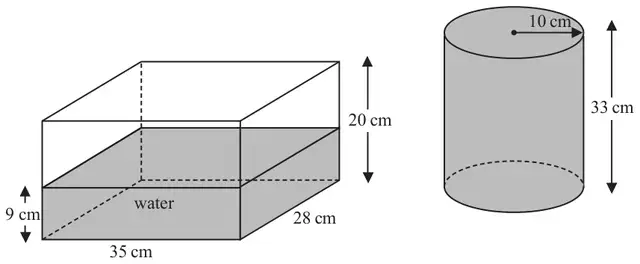

10 The diagram shows two water containers.
One is a cuboid and one is a cylinder.

Diagram NOT accurately drawn

The cuboid measures 35 cm by 28 cm by 20 cm
The surface of the water in the cuboid is 9 cm above the base of the cuboid.

The cylinder has a radius of 10 cm and a height of 33 cm
The cylinder is completely full of water.

Izzy is going to pour all the water from the cylinder into the cuboid.

Show that the cuboid will not be completely full of water.

(3)

Mark scheme

Scheme	Marks
(volume of water =) \(9 \times 35 \times 28 (= 8820)\) or (total volume of cuboid =) \(20 \times 35 \times 28 (= 19600)\) or (volume of space =) \((20 - 9) \times 35 \times 28 (= 10780)\)	M1
\(\pi \times 10^2 \times 33\) (= \(3300\pi\) or 10367(.25...)) oe	M1
(total volume of water =) “8820” + “10367(.25...)” (= 19187(.25...)) (difference between volumes of both solids =) “19600” − “10367(.25…)”(= 9232(.74…)) (volume not filled =) “19600” – “8820” – “10367(.25…)” (=412(.74…)) Working required Answer: Shown	A1
	(3)
	(3 marks)

M1: for a method to find a relevant volume for the cuboid

M1: (indep) for a method to find the volume of the cylinder, accept a volume in the range 10362 to 10368.6

Allow 3.14… or \(\dfrac{22}{7}\) for \(\pi\)

A1: correct workings with accurate figures
eg
