Higher June 2019 Paper 1 Q19

EdexcelHigherCurrent spec3 marksHistograms

19 The table gives information about the heights of some trees.

Height (\(h\) metres)	Frequency
\(0 \lt h \leqslant 20\)	15
\(20 \lt h \leqslant 35\)	48
\(35 \lt h \leqslant 40\)	21
\(40 \lt h \leqslant 50\)	16

On the grid, draw a histogram for this information.

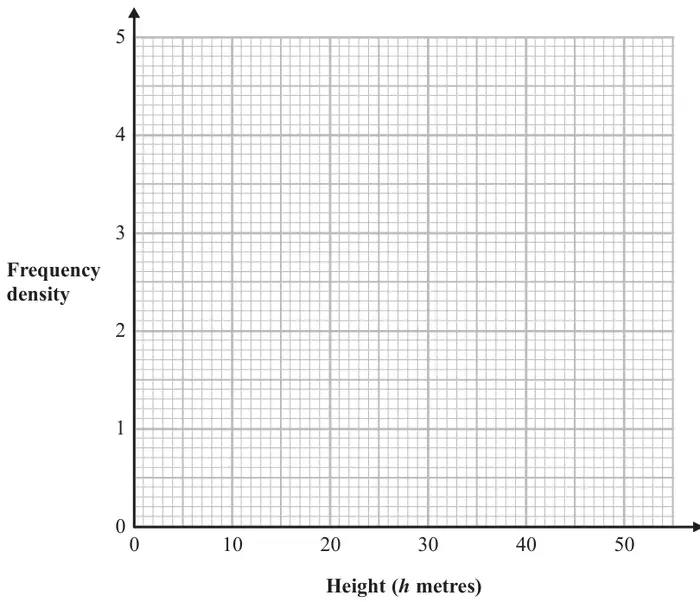

Grid for the histogram: frequency density 0 to 5 against height (h metres) 0 to 50

(3)

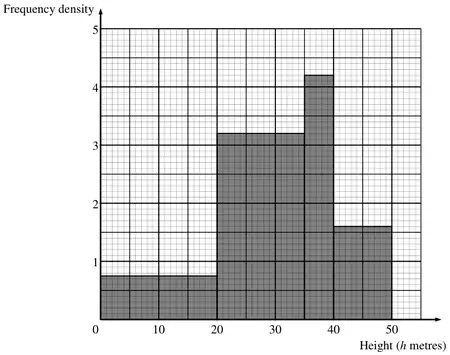

Correct histogram: 0 to 20 height 0.75, 20 to 35 height 3.2, 35 to 40 height 4.2, 40 to 50 height 1.6 — Mark scheme
