Higher January 2021 Paper 2R Q16

EdexcelHigherCurrent spec5 marksBasic ProbabilitySets

16 Two events \(A\) and \(B\) are such that   \(\mathrm{n}(A) = 62 \quad \mathrm{n}(B) = 30\)   and   \(\mathrm{n}(A \cup B) = 68\)

Given that \(\mathrm{n}(\mathscr{E}) = 80\)

(a) complete the Venn diagram to show the number of elements in each region.

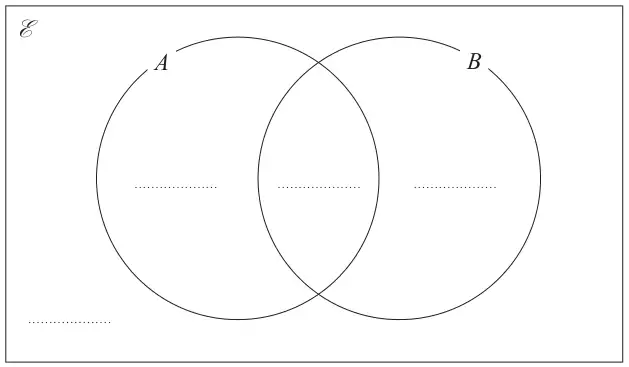

Venn diagram with two overlapping circles A and B inside a rectangle, with blank answer lines in each of the four regions
(2)

An element is chosen at random from \(\mathscr{E}\).

(b) Using the Venn diagram, find the probability that this element is in
(i) \(A \cap B\) (1)
(ii) \(A \cup B'\) (2)
