Foundation November 2021 Paper 1 Q12
12

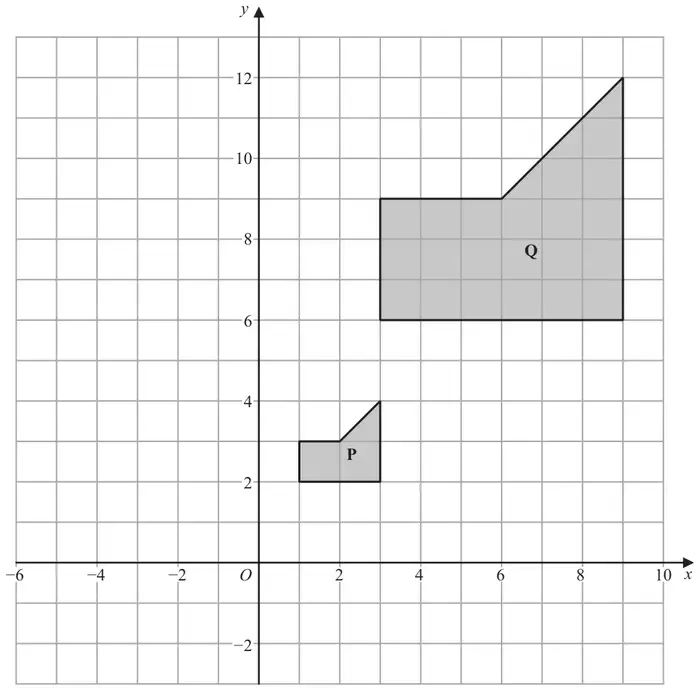

(a) Describe fully the single transformation that maps shape P onto shape Q. (3)
(b) On the grid, reflect shape P in the line with equation \(x = 5\)
Label your shape R. (2)
Label your shape R. (2)
| Scheme | Marks |
|---|---|
| Enlargement | B1 |
| scale factor 3 | B1 |
| centre (0, 0) | B1 |
| (3) |
Notes
B1: for enlargement, enlarge, etc so long as no mention of rotation, reflection or translation, flip, move etc.
B1: SF 3, triple, three times etc. with no mention of a vector, line, angle of rotation.
B1: Accept centre \(O\) or the origin
| Scheme | Marks |
|---|---|
| line \(x = 5\) drawn or shape in correct orientation, not necessarily in correct position. | M1 |
| Shape with vertices at (7, 2), (7, 4), (8, 3), (9, 3), (9, 2) | A1 |
| (2) | |
| (5 marks) |
Notes
M1: Can be implied by correct answer.
