Foundation June 2021 Paper 1 Q12

EdexcelCurrent spec5 marksTransformations of Shapes

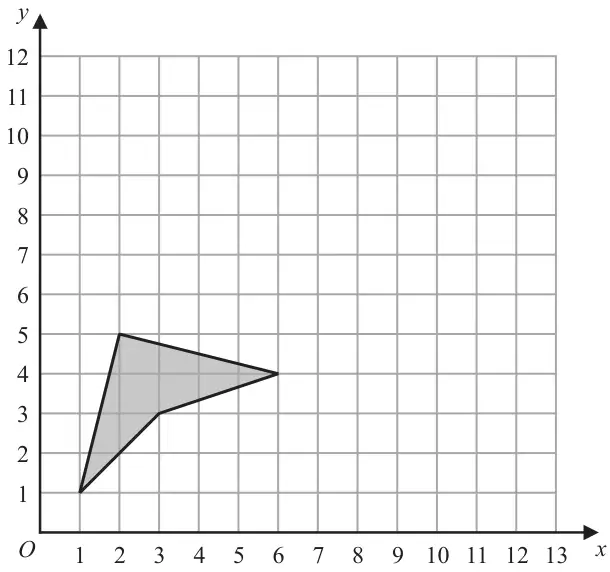

12 The diagram shows a shaded shape on a grid.

Grid with x from 0 to 13 and y from 0 to 12; shaded quadrilateral with vertices (1, 1), (2, 5), (6, 4) and (3, 3)
(a) On the grid, reflect the shape in the line with equation \(x = 6\) (2)

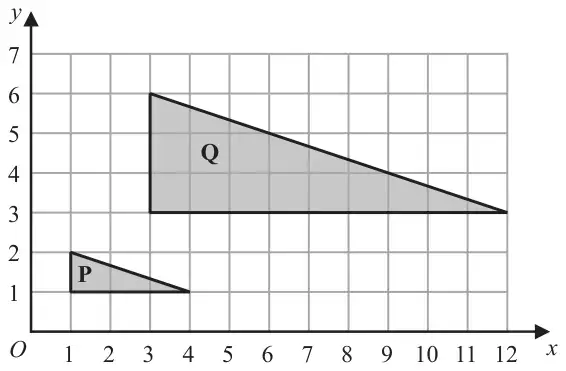

The diagram below shows triangle P and triangle Q drawn on a grid.

Grid with x from 0 to 12 and y from 0 to 7; triangle P has vertices (1, 1), (1, 2) and (4, 1); triangle Q has vertices (3, 3), (3, 6) and (12, 3)
(b) Describe fully the single transformation that maps triangle P onto triangle Q. (3)
