Foundation June 2022 Paper 2 Q2

EdexcelFoundationCurrent spec5 marks2D Area & PerimeterSimilar Shapes

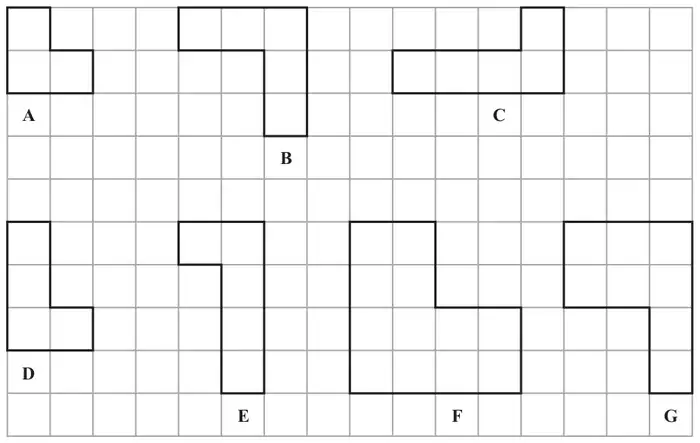

2 Here are seven shapes on a centimetre grid.

Seven shapes A to G drawn on a centimetre grid
(a) Write down the letters of the two shapes that are congruent. (1)

Two of the seven shapes are similar but are not congruent.

(b) Write down the letters of these two shapes. (1)

Shape F has exactly one line of symmetry.

(c) On shape F on the grid, draw this line of symmetry. (1)
(d) Work out the perimeter of shape B. (1)
(e) Work out the area of shape G. (1)
