Foundation January 2023 Paper 2R Q16

EdexcelFoundationCurrent spec3 marksTransformations of Shapes

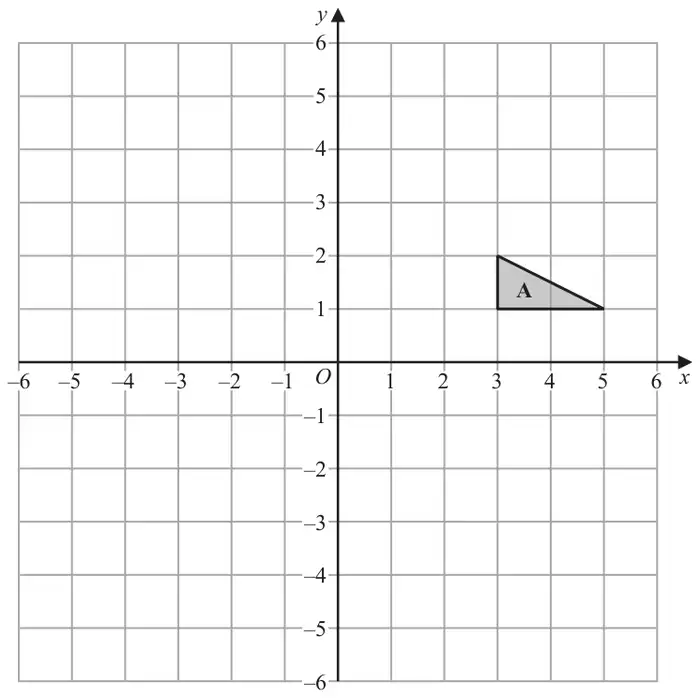

Grid with x from -6 to 6 and y from -6 to 6 showing shaded triangle A with vertices (3, 1), (3, 2) and (5, 1)

(a) On the grid, rotate triangle A 180° about (1, –1)
Label the new triangle B (2)

(b) On the grid, translate triangle A by the vector \(\begin{pmatrix} -7 \\ 3 \end{pmatrix}\)
Label the new triangle C (1)

Mark scheme (a)

Scheme	Marks
Triangle drawn at (–1, –3) (–1, –4) (–3, –3)	B2
	(2)

Notes

B2: for a correct triangle with correct orientation and position

If not B2 then award B1 for a correct triangle drawn with correct orientation in wrong position or triangle drawn with 2 out of 3 correct vertices

Scheme	Marks
Triangle drawn at (–4, 4) (–4, 5) (–2, 4)	B1
	(1)
	(3 marks)
