Foundation January 2023 Paper 1 Q14

EdexcelFoundationCurrent spec4 marksTransformations of Shapes

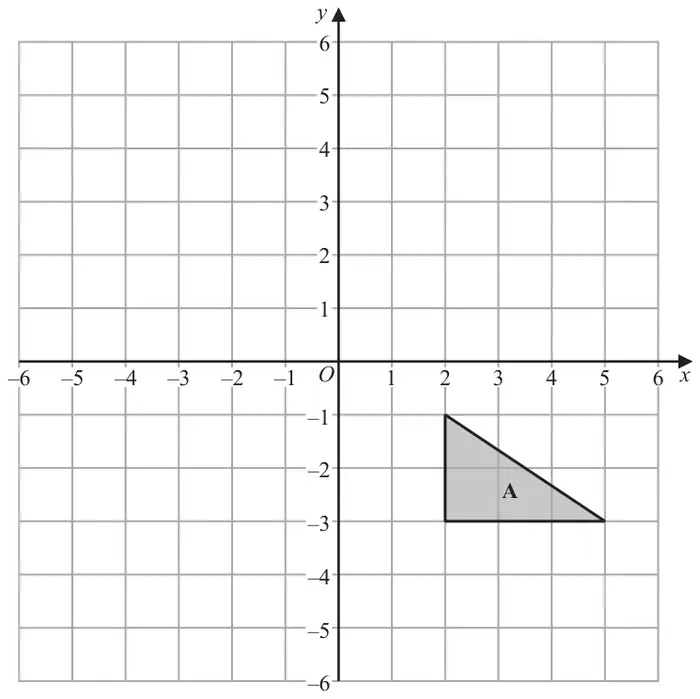

Grid with x and y from -6 to 6 showing triangle A with vertices (2, -1), (2, -3) and (5, -3)

(a) On the grid, rotate triangle A 90° anticlockwise about centre \(O\) (2)

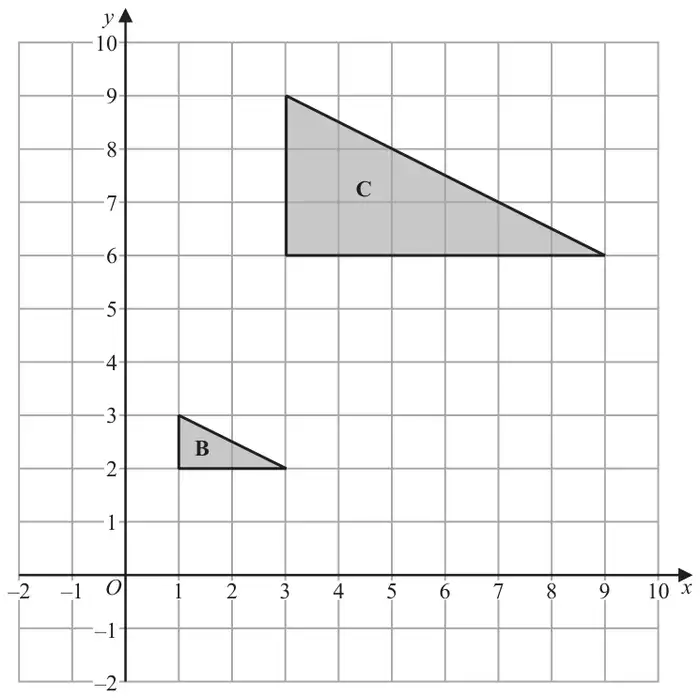

Grid with x from -2 to 10 and y from -2 to 10 showing triangle B with vertices (1, 2), (1, 3) and (3, 2) and triangle C with vertices (3, 6), (3, 9) and (9, 6)

(b) Describe fully the single transformation that maps triangle B onto triangle C (2)

Mark scheme (a)

Scheme	Marks
Correct rotation	B2
	(2)

Notes

B2: for a fully correct rotation at (1, 2) (3, 2) (3, 5)

(B1 for the triangle in correct orientation and size or
rotated 90° clockwise about the origin (–1, –2) (–3, –2) (–3, –5))

Mark scheme (b)

Scheme	Marks
Enlargement, scale factor 3 and (0,0)	B2
	(2)
	(4 marks)

Notes

B2: for enlargement, scale factor 3 and (0,0)

(B1 for 2 correct from

for enlargement, enlarge, etc so long as no mention of rotation, reflection or translation, flip, move etc.

or

SF 3, three times etc.

or

(0, 0) or Origin or 0 stated. Accept about, from etc. with no mention of line, or column vector.)
