Higher June 2024 Paper 1 Q13

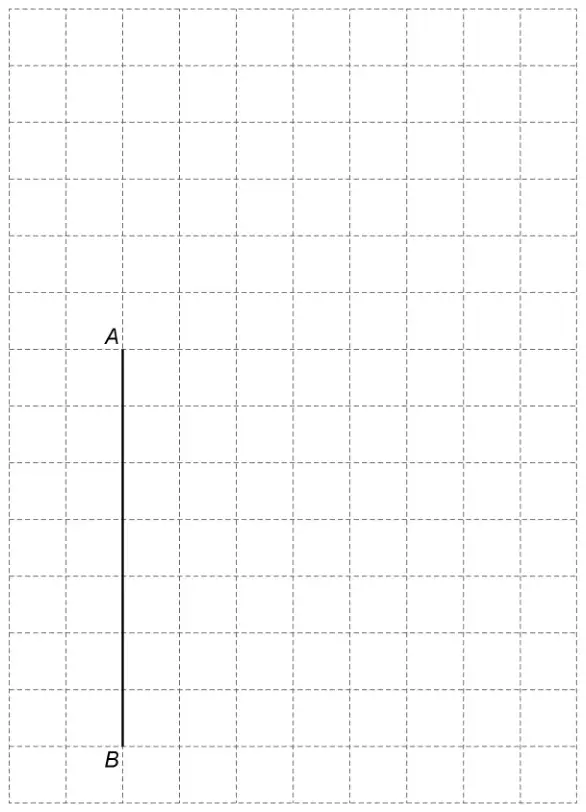

13 \(ABCDE\) is a pentagon with \(\quad AB = 7\) cm

• \(BC = 6\) cm
• \(AB\) and \(BC\) are perpendicular.
• \(AB\) and \(DC\) are equal and parallel.
• Area of the pentagon \(= 54\ \text{cm}^2\)
• The pentagon has exactly one line of symmetry.

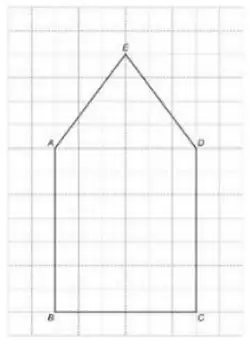

Complete a labelled drawing of the pentagon. [4 marks]
