Foundation November 2024 Paper 1 Q14
14

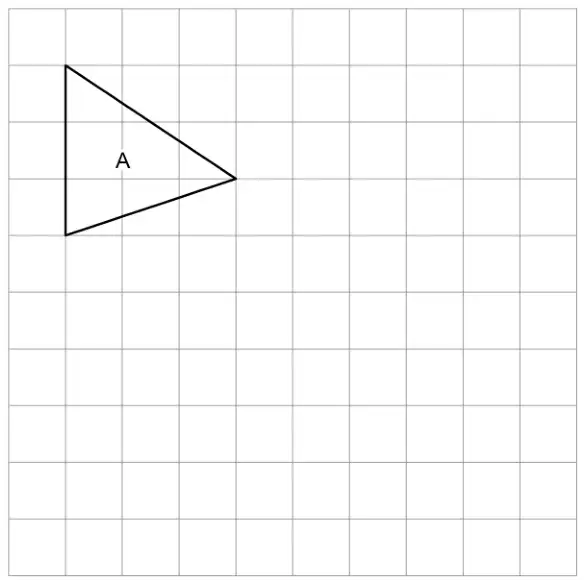

(a) On the grid, draw a shape congruent to triangle A. [1 mark]

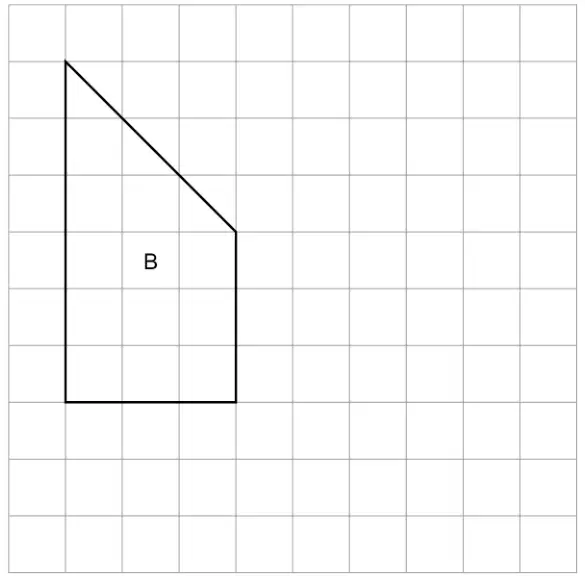

(b) On the grid, enlarge shape B by scale factor \(\dfrac{1}{3}\) [2 marks]
| Answer | Mark | Comments |
|---|---|---|
| Congruent shape drawn | B1 |
Additional guidance
Mark intention but whole shape must be on the grid
Shape can be in any orientation
| Answer | Mark | Comments |
|---|---|---|
| Correct shape drawn | B2 | B1 two or three correct sides or enlargement of the whole shape, with sf \(\lt 1\) and sf \(\ne \dfrac{1}{3}\) |
Additional guidance
Mark intention but whole shape must be on the grid
Shape can be in any position or orientation
