Numeracy Foundation November 2016 Unit 1 Q5

WJECFoundationCurrent spec3 marksDrawing & Using Graphs

5. Marcus is a farmer.
He has his own conversion graph to change between acres and square yards.

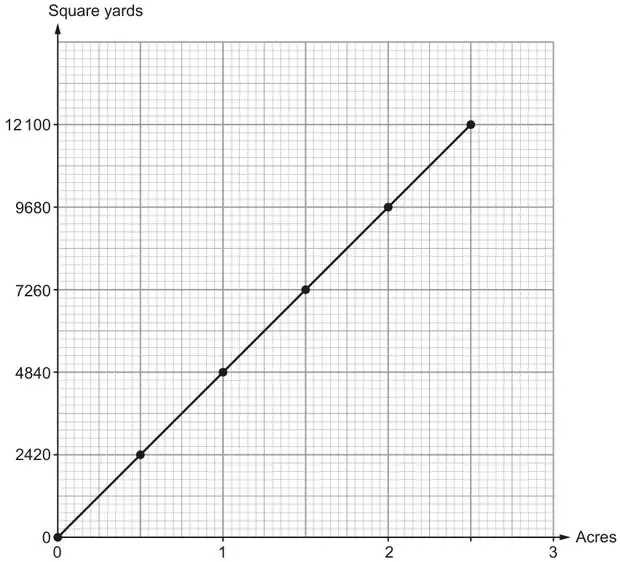

Conversion graph: Acres from 0 to 3 on the horizontal axis, Square yards on the vertical axis labelled 0, 2420, 4840, 7260, 9680, 12 100; a straight line from (0, 0) through points at every half acre up to (2.5, 12 100)

Complete each of the following statements.

(a) 3 acres is equal to …………………………………… square yards. [1]
(b) 5·5 acres is equal to …………………………………… square yards. [2]
