Intermediate November 2020 Unit 2 Q5

WJECIntermediateCurrent spec4 marksTransformations of Shapes

5.

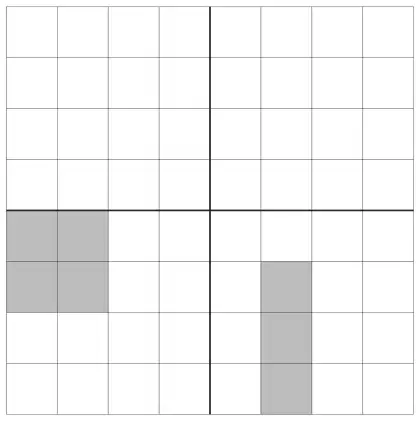

(a) Shade the least number of squares so that the grid has rotational symmetry of order 2.
The squares you shade must be in the upper two quadrants. [2]
8 by 8 grid divided into four quadrants, with a 2 by 2 square shaded in the lower left quadrant and a vertical 1 by 3 strip shaded in the lower right quadrant

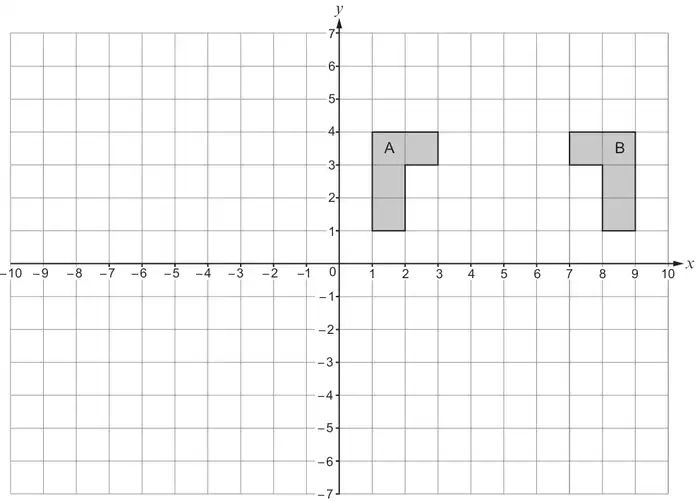

(b) Describe fully the single transformation that transforms shape A onto shape B. [2]
Coordinate grid from x = −10 to 10 and y = −7 to 7 showing L-shape A with vertices (1,1), (2,1), (2,3), (3,3), (3,4), (1,4) and L-shape B with vertices (9,1), (8,1), (8,3), (7,3), (7,4), (9,4)
