Intermediate June 2022 Unit 2 Q6

WJECIntermediateCurrent spec4 marksTransformations of Shapes

6.

(a) Reflect the shape below in the line \(x = 1\). [2]
Coordinate grid from −8 to 8 on both axes with a shaded L-shaped shape covering x from −5 to −2 and y from 2 to 5, missing the square from x = −5 to −4, y = 2 to 3

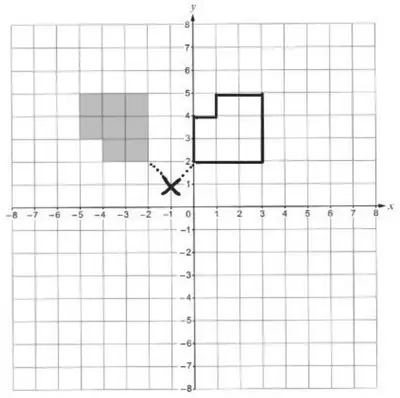

(b) Rotate the shape below through 90° clockwise about the point (–1, 1). [2]

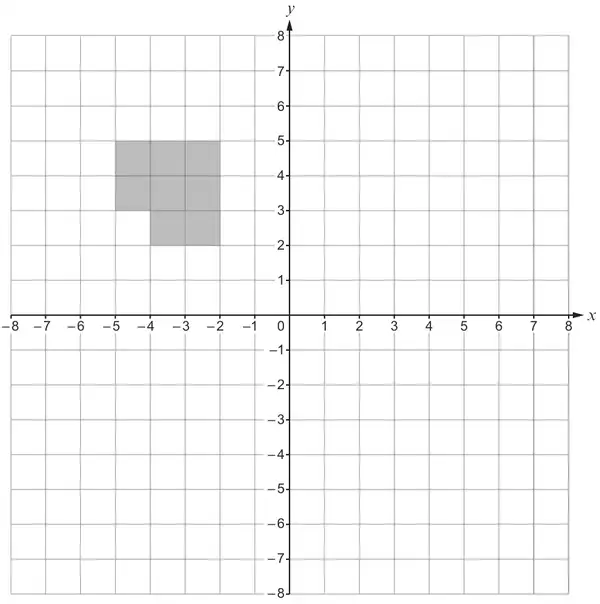

Coordinate grid from −8 to 8 on both axes with the same shaded L-shaped shape covering x from −5 to −2 and y from 2 to 5
