Higher June 2023 Unit 2 Q9

WJECHigherCurrent spec2 marksTransformations of Shapes

9. Enlarge the given triangle by a scale factor of –2, using point A as the centre of enlargement. [2]

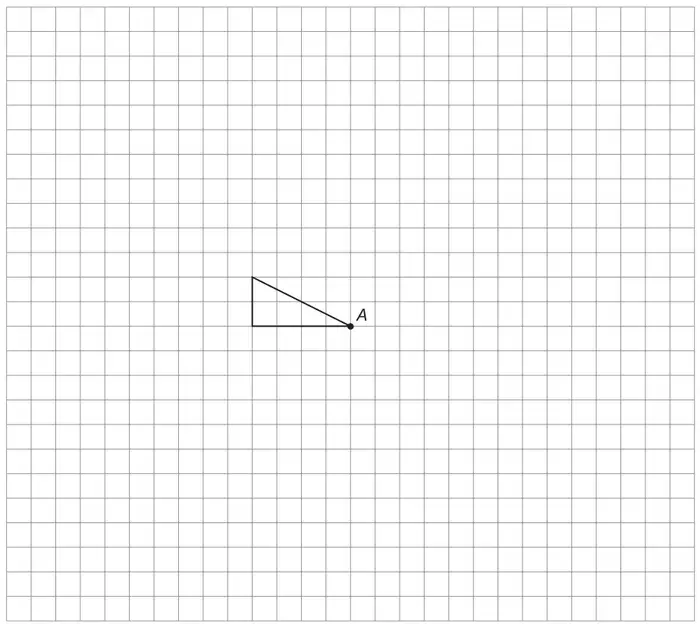

Square grid with a right-angled triangle: a horizontal side 4 squares long ending at the point A on the right, and a vertical side 2 squares tall at the left end, the hypotenuse running from the top of that side to A
