Foundation November 2016 Unit 2 Q17

WJECFoundationCurrent spec5 marksTransformations of Shapes

17.

(a) Reflect the triangle S in the line \(y = 2\). [2]

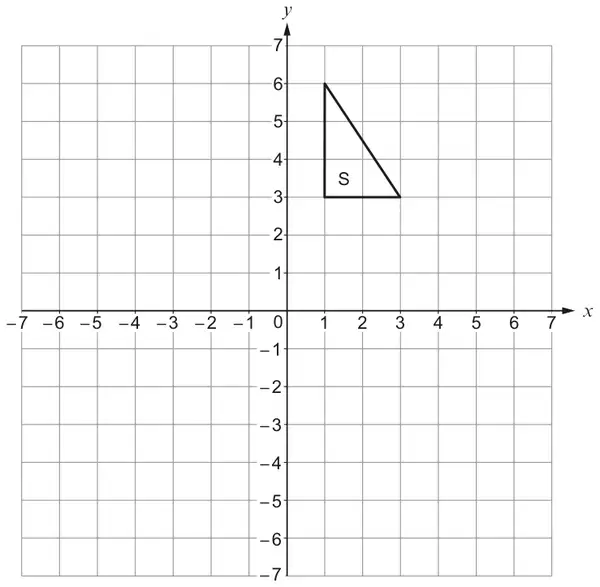

Coordinate grid with x and y from −7 to 7; triangle S has vertices (1, 3), (1, 6) and (3, 3)
(b) Describe fully a single transformation that transforms triangle S onto triangle T. [3]

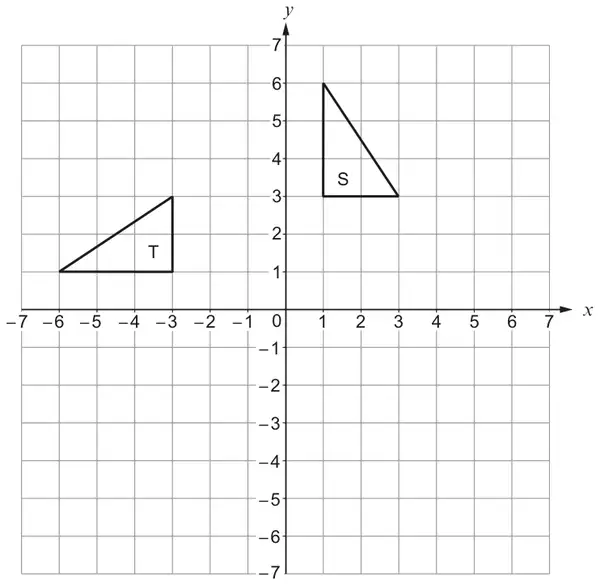

Coordinate grid with x and y from −7 to 7; triangle S has vertices (1, 3), (1, 6) and (3, 3); triangle T has vertices (−6, 1), (−3, 1) and (−3, 3)
