Intermediate November 2018 Unit 1 Q7

WJECIntermediateCurrent spec3 marksConstructions

7.

(a)
Point P with a North line through it; line PX goes down to the left, making an angle of 34° with the southward direction of the North line

Diagram not drawn to scale

What is the bearing of X from point P?
Circle the correct answer. [1]

146°    326°    214°    034°    234°

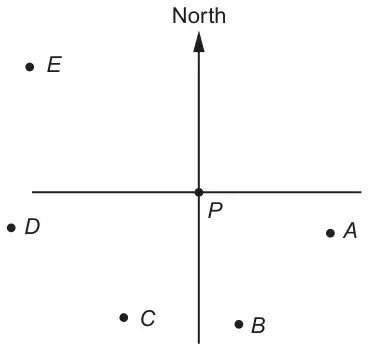

(b) The diagram below shows 6 points on a map. The diagram is drawn to scale.
Map drawn to scale: point P where a North line crosses a horizontal line, with points E (up and to the left), D (left, slightly below), A (right, slightly below), C (down and to the left) and B (down and slightly to the right)
(i) A ship sails from point P on a bearing of 107°.
It sails towards one of the five points A, B, C, D or E.
Which of the five points is the ship sailing towards?
Circle the correct answer. [1]

A    B    C    D    E

(ii) A second ship sails from point P for a number of miles on a bearing of 070°.
It then changes direction and sails on a bearing of 270°.
It is possible for the ship to reach only one of the five points A, B, C, D or E.
Which point can the ship reach?
Circle the correct answer. [1]

A    B    C    D    E
