Higher November 2022 Unit 1 Q12

WJECHigherCurrent spec3 marksTransformations of Shapes

12. Describe fully the single transformation that transforms shape A onto shape B. [3]

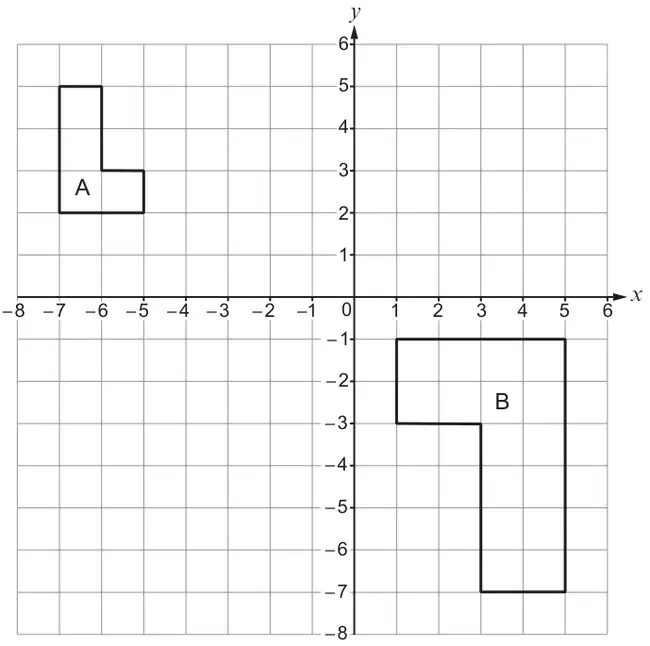

Grid, x from −8 to 6 and y from −8 to 6. Shape A is an L-shape with vertices (−7, 2), (−5, 2), (−5, 3), (−6, 3), (−6, 5), (−7, 5). Shape B is an L-shape with vertices (1, −1), (5, −1), (5, −7), (3, −7), (3, −3), (1, −3)
