Higher November 2021 Unit 1 Q9

WJECHigherCurrent spec3 marksTransformations of Shapes

9. Describe fully the single transformation that transforms shape A onto shape B. [3]

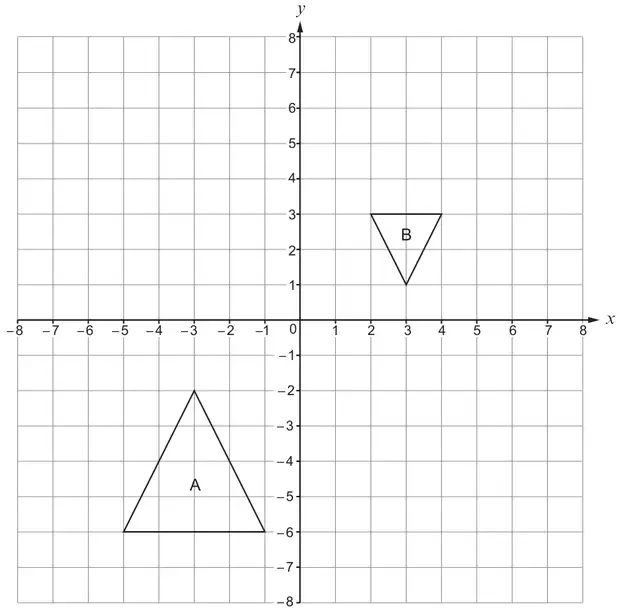

Grid with x and y from −8 to 8. Shape A is a triangle with vertices (−5, −6), (−1, −6) and (−3, −2). Shape B is a triangle with vertices (2, 3), (4, 3) and (3, 1)
