Foundation November 2018 Unit 1 Q19

WJECFoundationCurrent spec3 marksConstructions

19.

(a)
North line through P; line PX goes down to the left, making an angle of 34 degrees with the southward line from P

Diagram not drawn to scale

What is the bearing of X from point P?
Circle the correct answer. [1]

146°     326°     214°     034°     234°

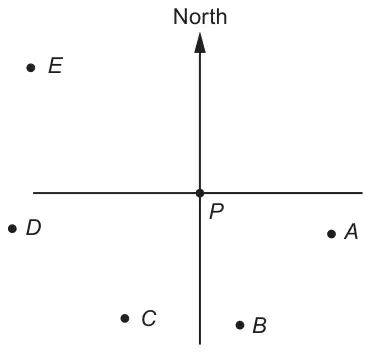

(b) The diagram below shows 6 points on a map. The diagram is drawn to scale.
Point P at the centre of a north–south and east–west cross, with North marked up. Points: E up and to the left, D left and slightly below, A right and slightly below, C below and to the left, B below and slightly right
(i) A ship sails from point P on a bearing of 107°.
It sails towards one of the five points A, B, C, D or E.
Which of the five points is the ship sailing towards?
Circle the correct answer. [1]

A       B       C       D       E

(ii) A second ship sails from point P for a number of miles on a bearing of 070°.
It then changes direction and sails on a bearing of 270°.
It is possible for the ship to reach only one of the five points A, B, C, D or E.
Which point can the ship reach?
Circle the correct answer. [1]

A       B       C       D       E
