Higher November 2017 Paper 6 Q9

OCRHigherCurrent spec4 marksAngles (Including Parallel Lines)

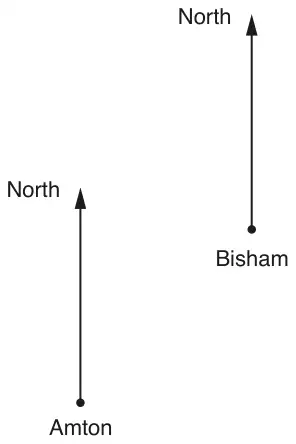

9 The diagram shows the positions of two towns, Amton and Bisham.

Amton and Bisham each with a North arrow; Bisham is above and to the right of Amton

Not to scale

The bearing of Bisham from Amton is \(b\)°.
The bearing of Amton from Bisham is \(6b\)°.

Calculate the 3-figure bearing of Amton from Bisham.

........................................ ° [4]
