Foundation November 2021 Paper 2 Q12

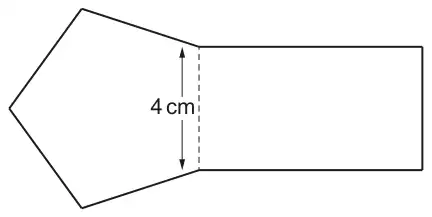

12 The shape below is formed by a rectangle of width 4 cm and a regular pentagon.
For the rectangle, the ratio of the width to the length is \(2 : 5\).
Not to scale
Work out the perimeter of the shape. [4]
| Answer | Marks | Part marks and guidance | |
|---|---|---|---|
| 40 nfww | 4 | B2 for length of rectangle = 10 or M1 for \(4 \div 2 \times 5\) M1 for \(5 \times 4 + 2 \times\) their length oe | |
