Foundation November 2018 Paper 3 Q10

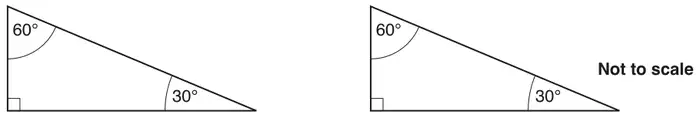

10 Here are two identical tiles.
(a) Sketch two quadrilaterals that can be made by joining the tiles.
Write the mathematical name of each quadrilateral.
Write the mathematical name of each quadrilateral.
Quadrilateral 1: Name: ..............................
Quadrilateral 2: Name: .............................. [4]
(b) The two tiles can also be joined to make two triangles.
Work out the interior angles of each triangle.
Triangle 1: ........° ........° ........°
Triangle 2: ........° ........° ........° [2]
| Answer | Marks | Part marks and guidance | |
|---|---|---|---|
| Two correct shapes each with correct name | 4 | B1 for each shape B1 dep on drawing seen for each correct name | Condone omission of diagonal Mark clear intention Kite or Rectangle must be joined along longest side Parallelogram must be joined along a shorter side Allow as additions to the given triangles |
| Answer | Marks | Part marks and guidance | |
|---|---|---|---|
| 30 30 120 60 60 60 | 2 | B1 for one set | If answer line blank, may be seen on diagram |
