Foundation June 2025 Paper 2 Q13

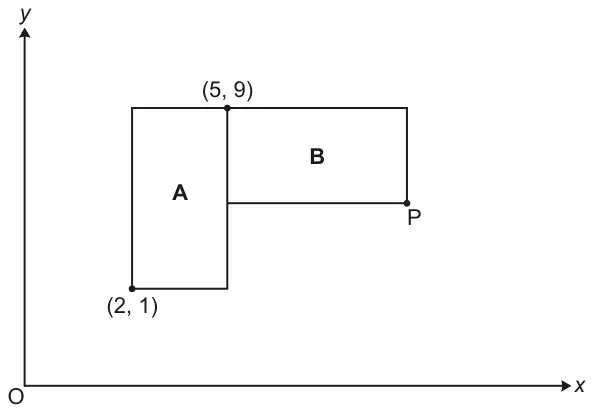

13 The diagram shows rectangle A and rectangle B.
Rectangle A has two labelled vertices at the points \((2, 1)\) and \((5, 9)\).
Not to scale
Rectangle A is rotated \(90^\circ\) anticlockwise around the centre \((5, 9)\) to form rectangle B.
Find the coordinates of the vertex marked P. [3]
| Answer | Marks | Part marks and guidance | |
|---|---|---|---|
| \((13, 6)\) | 3 | B2 for answer \((13, k)\) or \((k, 6)\) | |
| or M1 for identifying any correct distance | The correct distance must be 3, 8, 5 or 11, but they must be correctly shown, this may be shown on the diagram Seeing 3, 8, 11 or 5 from calculations or in co-ordinates alone is M0 | ||
| or identify on diagram point \((13, 9)\) or \((5, 6)\) | Condone missing bracket for coordinates. | ||
