Foundation June 2017 Paper 3 Q12

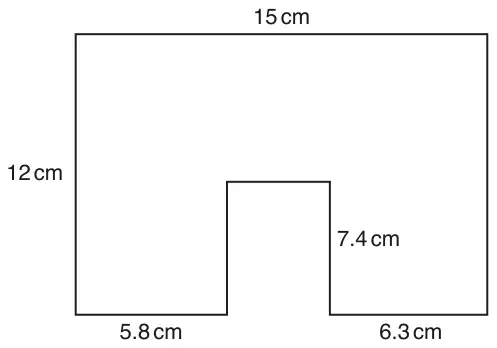

12 The shape below is formed from a rectangle measuring 12 cm by 15 cm from which a rectangle of length 7.4 cm has been removed.
Not to scale
Work out the perimeter of the shape. [3]
| Answer | Marks | Part marks and guidance | |
|---|---|---|---|
| 68.8 | 3 | M2 for \(2 \times (12 + 15 + 7.4)\) OR M1 for 15 – 5.8 – 6.3 soi 2.9 M1 for 12 + 15 + 12 + 6.3 + 7.4 + their 2.9 + 7.4 + 5.8 oe | Accept any other complete and correct methods May be 15 – 12.1 If not 2.9 then their 2.9 must be seen on diagram in correct place or come from 15 – 5.8 – 6.3 |
