A2 October 2021 Paper 1 Q10
10

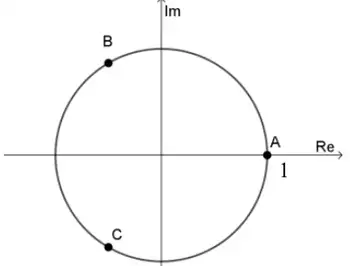

(a) Show on an Argand diagram the points representing the three cube roots of unity. [2]
(b)
(i) Find the exact roots of the equation \(z^3 - 1 = \sqrt{3}\,\mathrm{i}\), expressing them in the form \(r\mathrm{e}^{\mathrm{i}\theta}\), where \(r \gt 0\) and \(-\pi \lt \theta \lt \pi\). [5]
(ii) The points representing the cube roots of unity form a triangle \(\Delta_1\). The points representing the roots of the equation \(z^3 - 1 = \sqrt{3}\,\mathrm{i}\) form a triangle \(\Delta_2\).
State a sequence of two transformations that maps \(\Delta_1\) onto \(\Delta_2\). [2]
State a sequence of two transformations that maps \(\Delta_1\) onto \(\Delta_2\). [2]
(iii) The three roots in part (b)(i) are \(z_1\), \(z_2\) and \(z_3\).
By simplifying \(z_1 + z_2 + z_3\), verify that the sum of these roots is zero. [2]
By simplifying \(z_1 + z_2 + z_3\), verify that the sum of these roots is zero. [2]
(iv) Hence show that \(\sin 20^\circ + \sin 140^\circ = \sin 100^\circ\). [2]
| Scheme | Marks | AO |
|---|---|---|
![]() | B1 B1 | 1.1 1.1 |
| [2] |
Notes
B1: \(z = 1\)
B1: other two roots forming correct equilateral triangle
| Scheme | Marks | AO |
|---|---|---|
| (i) \(\left|1 + \sqrt{3}\,\mathrm{i}\right| = 2\) | B1 | 1.1 |
| \(\arg\left(1 + \sqrt{3}\,\mathrm{i}\right) = \dfrac{\pi}{3}\) | B1 | 1.1 |
| \(z = \sqrt[3]{2}\,\mathrm{e}^{\frac{\mathrm{i}\pi}{9}}\) | B1ft | 2.5 |
| \(\sqrt[3]{2}\,\mathrm{e}^{\frac{7\mathrm{i}\pi}{9}}\) | B1ft | 1.1 |
| \(\sqrt[3]{2}\,\mathrm{e}^{-\frac{5\mathrm{i}\pi}{9}}\) | B1ft | 1.1 |
| [5] | ||
| (ii) Rotated through \(20^\circ\) (oe) | B1 | 3.1a |
| Enlarged by \(\sqrt[3]{2}\) | B1 | 3.1a |
| [2] | ||
| (iii) \(\sqrt[3]{2}\,\mathrm{e}^{\frac{-5\mathrm{i}\pi}{9}} + \sqrt[3]{2}\,\mathrm{e}^{\frac{\mathrm{i}\pi}{9}} + \sqrt[3]{2}\,\mathrm{e}^{\frac{7\mathrm{i}\pi}{9}} = \dfrac{\sqrt[3]{2}\,\mathrm{e}^{\frac{-5\mathrm{i}\pi}{9}}\left(1 - \left(\mathrm{e}^{\frac{2\mathrm{i}\pi}{3}}\right)^3\right)}{1 - \mathrm{e}^{\frac{2\mathrm{i}\pi}{3}}}\) | M1 | 3.1a |
| \(= \dfrac{\sqrt[3]{2}\,\mathrm{e}^{\frac{-5\mathrm{i}\pi}{9}}\left(1 - \mathrm{e}^{2\mathrm{i}\pi}\right)}{1 - \mathrm{e}^{\frac{2\mathrm{i}\pi}{3}}} = 0\) | A1 | 2.2a |
| [2] | ||
| (iv) Imaginary part of sum of roots is zero \(\Rightarrow \sin\dfrac{\pi}{9} + \sin\dfrac{7\pi}{9} + \sin\left(-\dfrac{5\pi}{9}\right) = 0\) | M1 | 2.1 |
| \(\Rightarrow \sin 20^\circ + \sin 140^\circ = -\sin(-100^\circ) = \sin 100^\circ\) | A1 | 2.2a |
| [2] |
Notes
(b)(i)
B1ft: if roots correct but in cis form, withhold one mark only
(b)(iii)
M1: sum of GP formula. May use \(\cos\theta + i\sin\theta\) but must take out factor for M1
(b)(iv)
A1: AG
