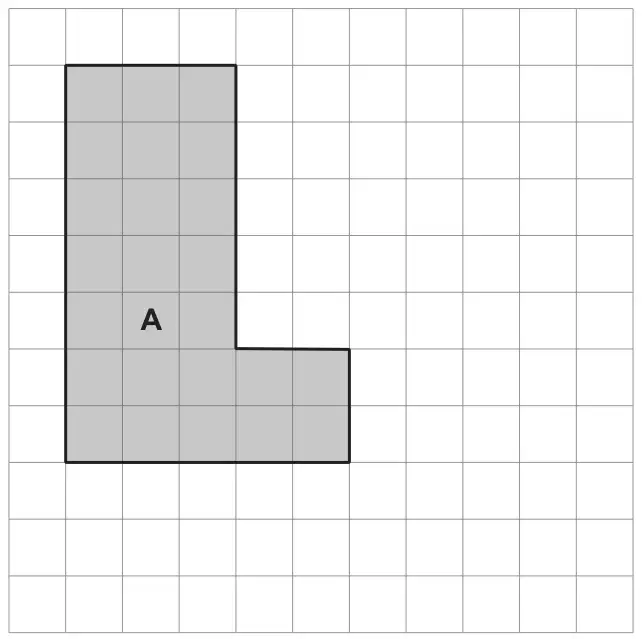

(a) On the grid below, draw a square that has the same area as shape A. [1]
(b)
(i) Work out the perimeter of shape A. [1]

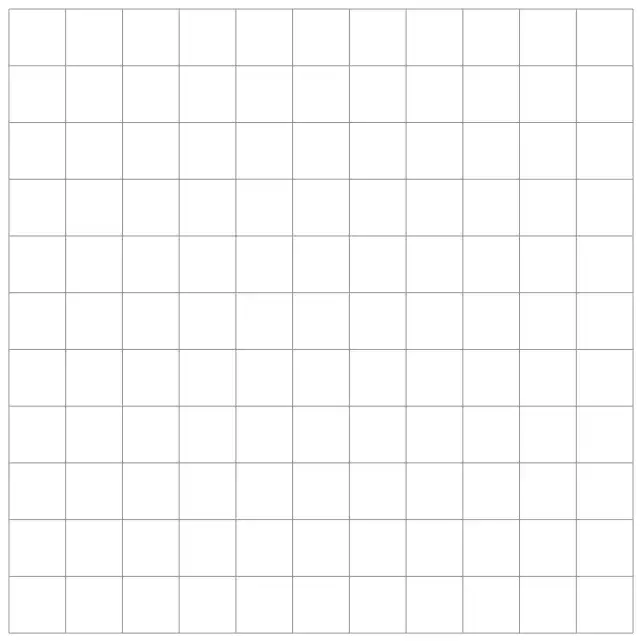

(ii) On the grid below, draw a rectangle that has the same perimeter as shape A. [1]
Mark scheme (a)
Scheme
Marks
Comments

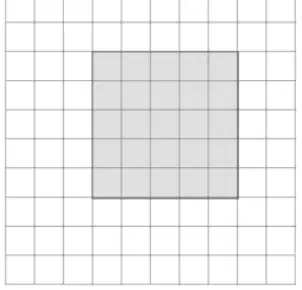

A square with 5cm sides
B1
Mark scheme (b)
Scheme
Marks
Comments
(i) 24(cm)
B1
(ii) A rectangle with sides 11 × 1 or 10 × 2 or 9 × 3 or 8 × 4 or 7 × 5
B1
Allow a square with 6 cm sides. FT their perimeter provided it’s even. Note: Allow a square for FT answers. Note: Award the marks for a rectangle with a perimeter of 24cm even if it doesn’t follow through (b)(i).
