Foundation November 2022 Paper 2 Q15
15.

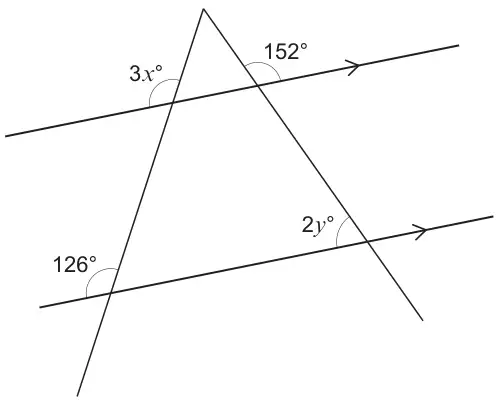

Diagram not drawn to scale
Find the value of \(x\) and the value of \(y\). [3]
| Scheme | Marks | Comments |
|---|---|---|
| (\(x\) =) 42 | B1 | |
| (\(y\) = ) (180 – 152) ÷ 2 | M1 | |
| = 14 | A1 | |
| (3) |
