Foundation November 2022 Paper 1 Q13
13. Kit paddles a canoe out to sea from the point marked \(S\).
He stops when he is:
- on a bearing of 160° from \(S\)
- 120 m from \(S\).

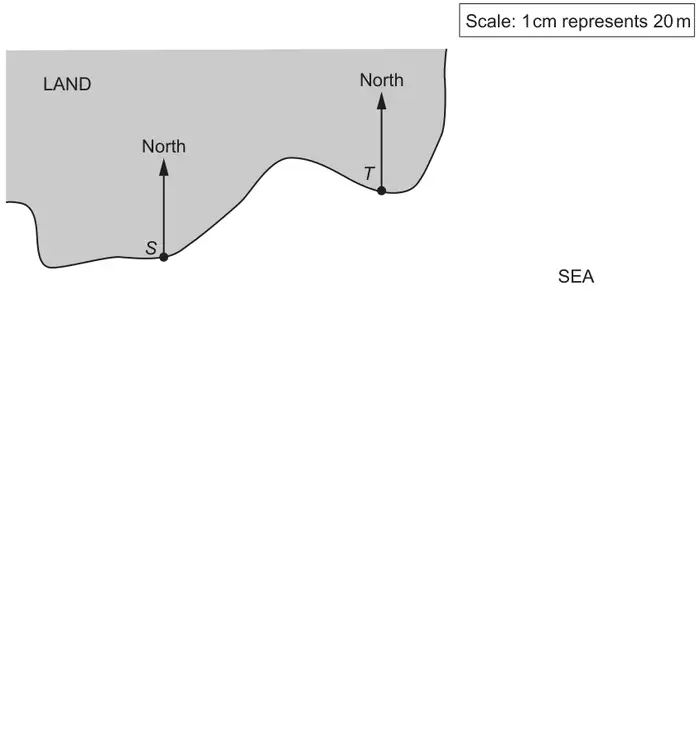

Use the scale diagram below to find Kit’s distance and bearing from \(T\) when he stops. [4]
On screen this diagram may not be shown at actual size. To measure it, use the question paper (PDF) printed at 100%.
Distance from \(T\) ............ m Bearing from \(T\) ............°
| Scheme | Marks | Comments |
|---|---|---|
| Kit’s position found correctly: 6 cm from \(S\) bearing 160° from \(S\) | B2 | Tolerances: ±2 mm, ±2° B1 for a correct distance or bearing |
| Correct distance from \(T\) Correct bearing from \(T\) | B2 | Tolerances: ±4 m, ±2° FT ‘their position of Kit’; B1 for either a correct distance or correct bearing |
| (4) |
