Foundation November 2018 Paper 1 Q13

EduqasFoundationCurrent spec3 marksTransformations of Shapes

13.

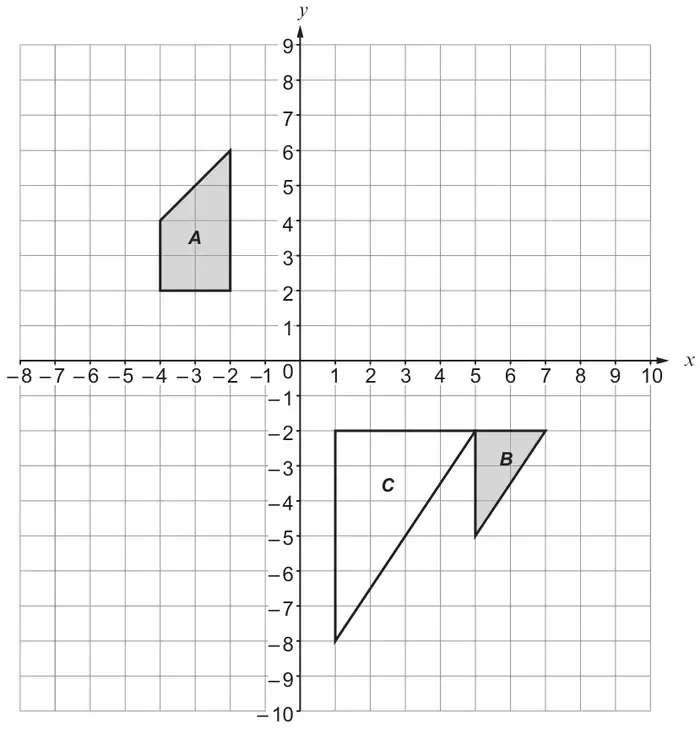

Diagram: coordinate grid, x from -8 to 10 and y from -10 to 9. Shape A has vertices (-4, 2), (-2, 2), (-2, 6) and (-4, 4). Triangle B has vertices (5, -2), (7, -2) and (5, -5). Triangle C has vertices (1, -2), (5, -2) and (1, -8)
(a) On the grid, draw the image of shape A after a rotation of 90° clockwise about (0, 0). [2]
(b)

Triangle C is the image of triangle B after an enlargement with scale factor 2.

On the grid, mark the position of the centre of this enlargement and label it P. [1]
