Foundation June 2022 Paper 2 Q16
16.

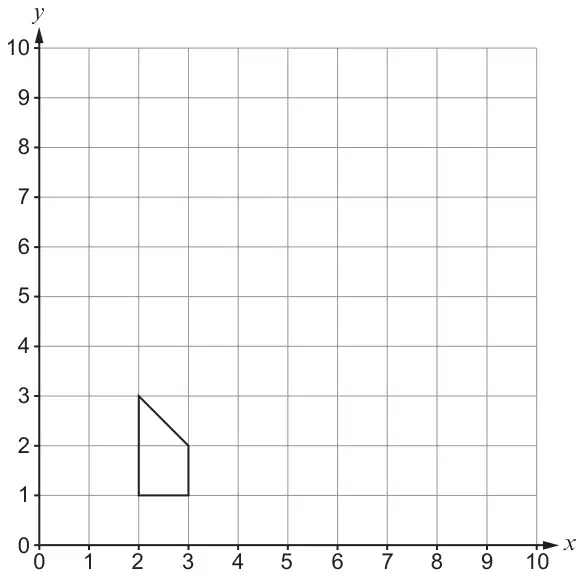

(a) Draw an enlargement of the shape below using a scale factor of 2 and (0,0) as the centre of enlargement. [3]
(b)

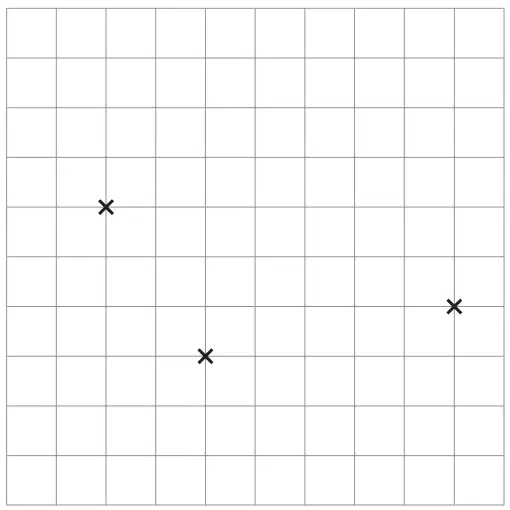

Three vertices of a parallelogram have been plotted on the grid below.
Plot the fourth vertex of the parallelogram. [1]
| Scheme | Marks | Comments |
|---|---|---|

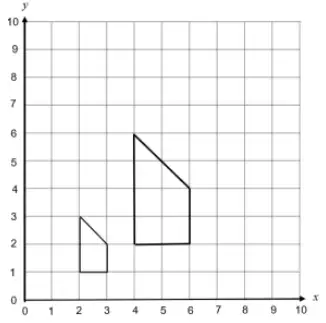

The correct shape in the correct position. | B3 | Allow a good freehand drawing. B2 for a correct enlargement in an incorrect position OR for four correct points plotted but not joined. B1 for two correct sides in the correct position OR three correct points plotted but not joined. If no marks allow SC1 for showing at least three correct ‘rays’ from (0,0). Treat consistent use of a different scale factor (≠1) as a misread. |
| Scheme | Marks | Comments |
|---|---|---|

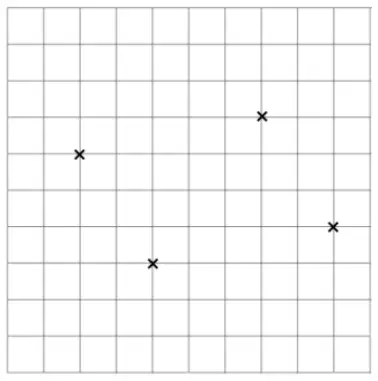

Correct vertex | B1 | |
| (4) |
