Foundation June 2019 Paper 1 Q6

EduqasFoundationCurrent spec4 marksDrawing & Using Graphs

6.

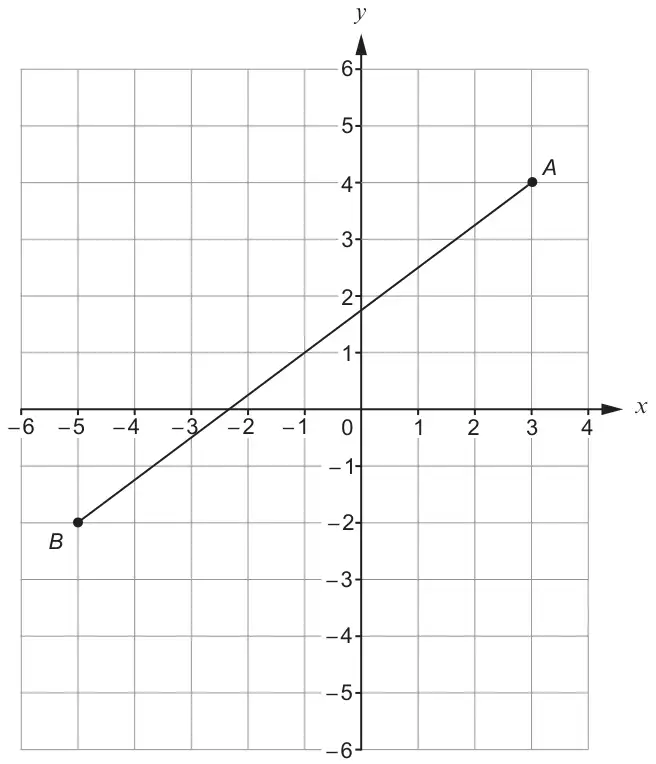

Grid: x from −6 to 4 and y from −6 to 6, with the line AB drawn from A at (3, 4) to B at (−5, −2)

The line AB is drawn on the 1 cm grid above.

(a)
(i)

Write down the coordinates of A. [1]

A ( ............ , ............ )

(ii)

The point C is the mid-point of AB.

Mark the position of the point C on the grid. [1]

(b)

The line BD is parallel to the \(y\)-axis.
Triangle ABD is a right-angled triangle.

Mark the position of point D on the grid and write down the length of AD. [2]

Length AD = .............................. cm
