Foundation June 2019 Paper 1 Q12

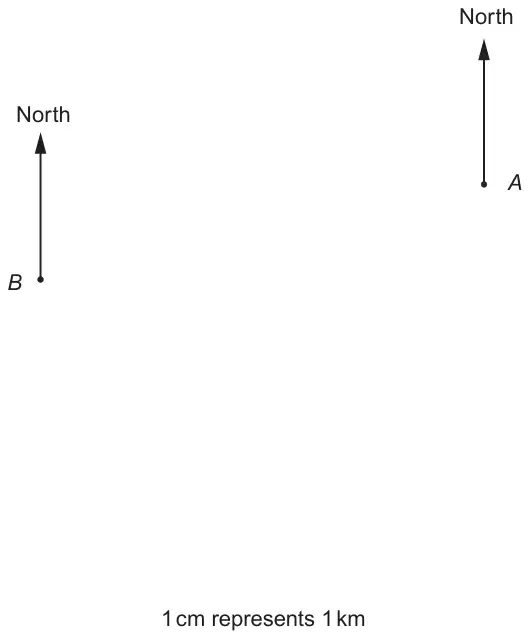

12. The diagram shows the position of two points, A and B.
The scale is 1 cm represents 1 km.
On screen this diagram may not be shown at actual size. To measure it, use the question paper (PDF) printed at 100%.
(a) Measure and write down the bearing of B from A. [1]
(b)
Point C is 5 km from A and 6 km from B.
The bearing of C from B is an acute angle.
Complete the diagram to find the position of point C. [3]
| Scheme | Marks | Comments |
|---|---|---|
| \(258^\circ \pm 2^\circ\) | B1 |
| Scheme | Marks | Comments |
|---|---|---|
| Arc centre A radius 5 cm ± 2 mm | B1 | Use overlay |
| Arc centre B radius 6 cm ± 2 mm | B1 | If no arcs shown, but single point indicated as C, then allow either or both of the first 2 marks if it satisfies one or both criteria; may be below AB If two points are drawn, each of which satisfies only one condition, then no marks |
| Position of C unambiguously identified | B1 | FT ‘their 5 cm ± 2 mm from A’ OR ‘their 6 cm ± 2 mm from B’ provided at least B1 already awarded; must be above AB |
| (4) |
