Foundation June 2017 Paper 2 Q6

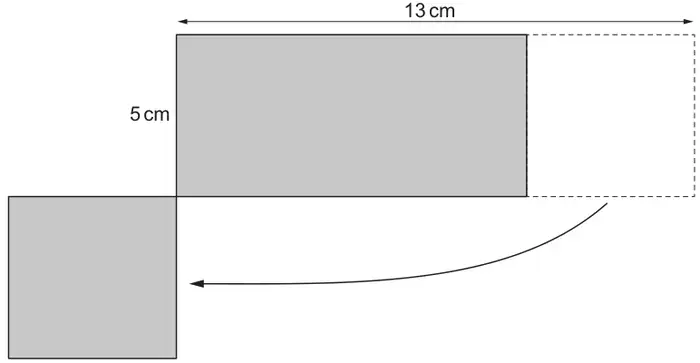

6. The diagram shows a company logo.
It is made by removing a square from a rectangle and replacing it as shown.
Diagram not drawn to scale
Is the perimeter of the logo greater, smaller or the same as the perimeter of the original rectangle?
Circle your answer.
Greater Smaller The same
Give a reason for your answer. [2]
| Scheme | Marks | Comments |
|---|---|---|
| ‘Greater’ circled AND valid evidence e.g. ‘the perimeter has increased from 36cm to 46cm’ or equivalent, ‘two extra 5cm lengths added’ ‘two extra sides’ | E2 | Award E1 for ‘greater’ circled and an incomplete reason given OR sight of 36(cm) and 46(cm). |
| (2) |
