Foundation June 2017 Paper 2 Q24
24.

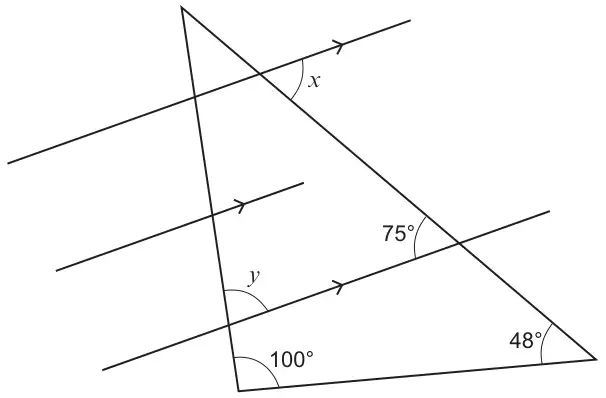

Diagram not drawn to scale
Work out the sizes of angle \(x\) and angle \(y\). [3]
\(x =\) ………………\(^\circ\)
\(y =\) ………………\(^\circ\)
| Scheme | Marks | Comments |
|---|---|---|
| (\(x =\)) 75 (°) | B1 | |
| (\(y =\)) 73 (°) | B2 | B1 for sight of 180 – 75 – 32, or 180 – 107, 180 – 75 – (180 – 100 - 48), or 180 – (360 – 100 – 48 – (180 – 75)) |
| (3) |
