4400 Higher November 2004 Paper 3 Q1

EdexcelHigherOld spec6 marksConstructions & Bearings

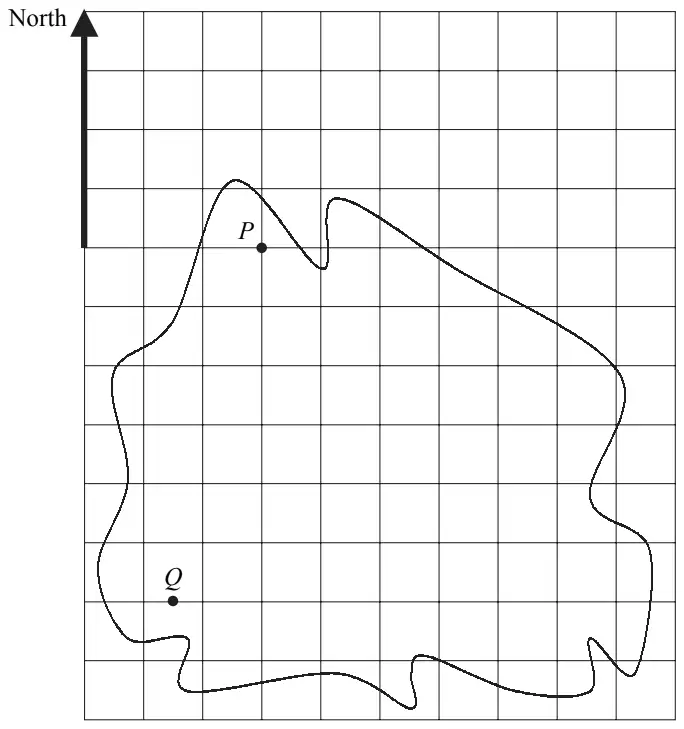

1 The diagram shows a map of an island.
Two towns, \(P\) and \(Q\), are shown on the map.

Map of an island on a centimetre grid with a North arrow; town P near the top left and town Q near the bottom left
(a) Find the bearing of \(Q\) from \(P\). (2)

The scale of the map is 1 cm to 5 km.

(b) Find the real distance between \(P\) and \(Q\). (2)

Another town, \(R\), is due East of \(Q\).
The bearing of \(R\) from \(P\) is 135°.

(c) On the map, mark and label \(R\). (2)
