4MA0 Higher June 2012 Paper 3 Q7

EdexcelHigherOld spec4 marks2D Area & Perimeter

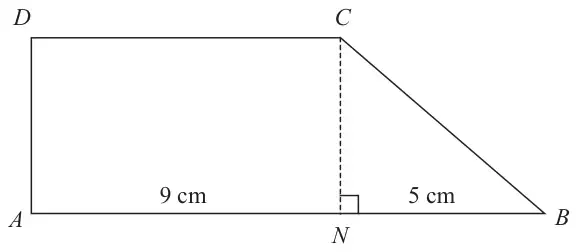

Shape ABCD: rectangle ANCD with AN = 9 cm and right-angled triangle NBC with NB = 5 cm

Diagram NOT accurately drawn

The shape \(ABCD\) is made from a rectangle \(ANCD\) and the right-angled triangle \(NBC\).
\(ANB\) is a straight line.
\(AN\) = 9 cm.
\(NB\) = 5 cm.
The area of rectangle \(ANCD\) is 36 cm\(^2\)

Work out the area of shape \(ABCD\).

(4)

Mark scheme

Scheme	Marks
9 × height = 36	M1
height = 4	A1
\(36 + \frac{1}{2} \times 5 \times \text{“}4\text{”}\) or \(\dfrac{14 + 9}{2} \times \text{“}4\text{”}\)	M1
46	A1
	(Total 4 marks)

Notes

A1: cao

Apart from Questions 9, 13, 18, 20 and 21 (where the mark scheme states otherwise) the correct answer, unless clearly obtained by an incorrect method, should be taken to imply a correct method.
