4400 Higher June 2008 Paper 4 Q2

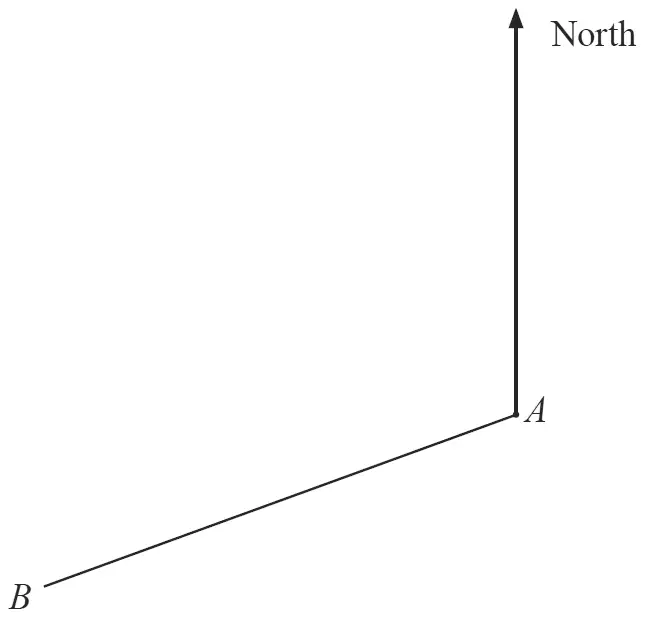

2 The diagram shows two towns, \(A\) and \(B\), on a map.
(a) Measure the bearing of \(B\) from \(A\). (2)
(b) \(C\) is another town.
The bearing of \(C\) from \(A\) is \(125^\circ\).
Find the bearing of \(A\) from \(C\). (2)
The bearing of \(C\) from \(A\) is \(125^\circ\).
Find the bearing of \(A\) from \(C\). (2)
| Scheme | Marks |
|---|---|
| \(250 \pm 2\) | B2 |
| (2) |
Notes
B2: B2 for angle 248 to 252 inclusive.
B1 for angle 190 to 260 inclusive
| Scheme | Marks |
|---|---|
| \(305 \pm 3\) | B2 |
| (2) | |
| (4 marks) |
Notes
B2: Award B1 for a bearing \(270^\circ \lt\) angle \(\lt 360^\circ\)
