4MA0 Higher January 2017 Paper 3R Q6

EdexcelHigherOld spec4 marksTransformations of Shapes

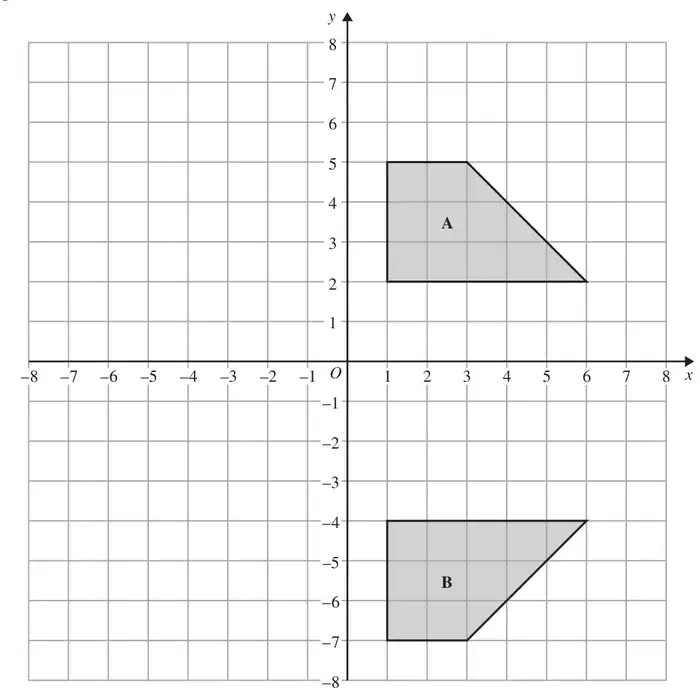

Grid with x from -8 to 8 and y from -8 to 8; shape A with vertices (1, 2), (1, 5), (3, 5) and (6, 2); shape B with vertices (1, -4), (1, -7), (3, -7) and (6, -4)

(a) Describe fully the single transformation that maps shape A onto shape B. (2)

(b) On the grid, rotate shape A 90° anticlockwise about (0, 0)
Label the new shape C. (2)

Scheme	Marks
Reflection in \(y = -1\)	B1 B1
	(2)

Mark scheme (b)

Scheme	Marks
Vertices at (−2, 1) (−2, 6) (−5, 1) (−5, 3)	B2
	(2)
	(4 marks)

Notes

B2: If not B2 then award B1 for a correct transformation 90° clockwise about (0, 0) or 3 vertices correct or correct shape in correct orientation but in wrong position
