4MA0 Higher January 2014 Paper 4 Q5

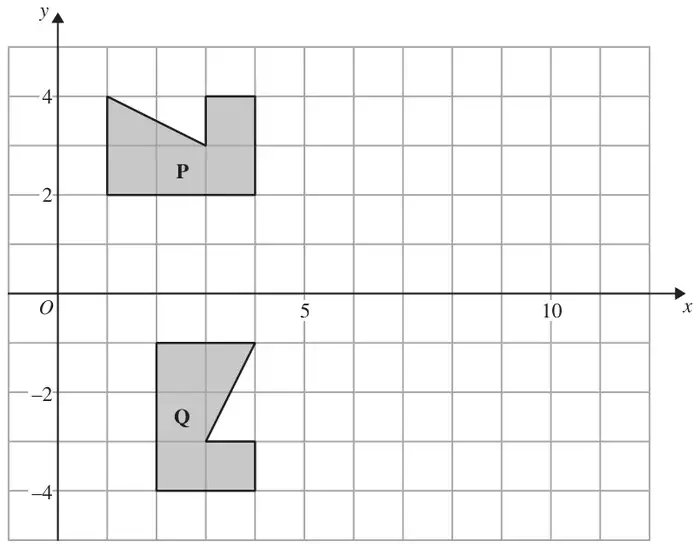

5 The diagram shows a shape \(\mathbf{P}\), and a shape \(\mathbf{Q}\).
Describe fully the single transformation which maps shape \(\mathbf{P}\) onto shape \(\mathbf{Q}\).
(3)
| Scheme | Marks |
|---|---|
| rotation | B1 |
| 90° clockwise or − 90° | B1 |
| {centre} (0,0) or \(O\) or origin | B1 |
| (3) | |
| (3 marks) |
Notes
B1: accept 270° or 270° anticlockwise.
B1: Award no marks if multiple transformations.
condone lack of brackets around 0,0
