4MA0 Foundation June 2017 Paper 2R Q9

EdexcelFoundationOld spec2 marks2D Area & Perimeter

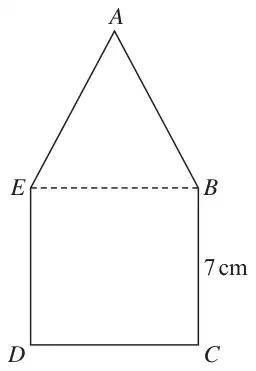

9 The diagram shows a shape \(ABCDE\) made from a square \(BCDE\) and an equilateral triangle \(ABE\).

Shape ABCDE: equilateral triangle ABE on top of square BCDE; BC = 7 cm; EB is dashed

Diagram NOT accurately drawn

\(BCDE\) is a square of side 7 cm.

Work out the perimeter of shape \(ABCDE\).

(2)
