4MA0 Foundation June 2016 Paper 2R Q1

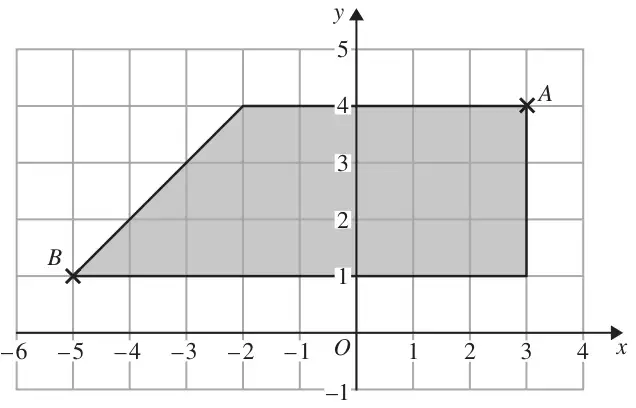

1 The diagram shows a shaded shape drawn on a centimetre grid.
(a)
(i) Write down the coordinates of A.
(ii) Write down the coordinates of B.
(2)(b) Find the area of the shaded shape. (2)
| Scheme | Marks |
|---|---|
| (i) (3, 4) | B1 |
| (ii) (−5, 1) | B1 |
| (2) |
| Scheme | Marks |
|---|---|
| 5 × 3 + 3 + 0.5 + 0.5 + 0.5 or 5 × 3 + 0.5 × 3 × 3 oe | M1 |
| 19.5 | A1 |
| (2) |
