4MA0 Foundation June 2016 Paper 1 Q9

EdexcelFoundationOld spec8 marksAngles in PolygonsTransformations of Shapes

9 Here are six quadrilaterals.

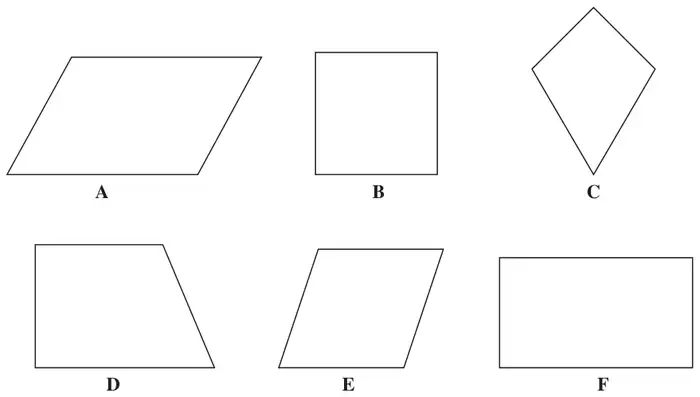

Six quadrilaterals: A a parallelogram, B a square, C a kite, D a trapezium, E a rhombus, F a rectangle
(a) Write down the mathematical name for quadrilateral C. (1)

Two of the quadrilaterals have no lines of symmetry.

(b) Write down the letters of these two quadrilaterals. (2)

Two of the quadrilaterals have 2 lines of symmetry and rotational symmetry of order 2

(c) Write down the letters of these two quadrilaterals. (2)
(d) On the grid, reflect the shaded shape in the mirror line.

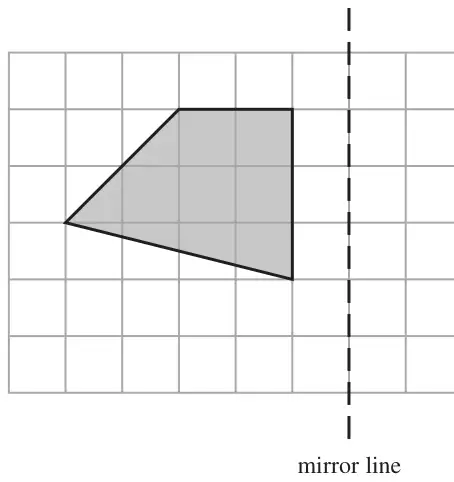

Square grid with a shaded quadrilateral to the left of a vertical dashed mirror line
(1)

Here is a different quadrilateral.

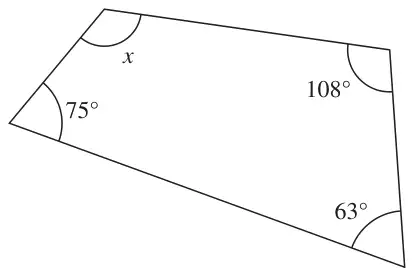

Quadrilateral with angles 75°, x, 108° and 63°

Diagram NOT accurately drawn

(e) Work out the size of the angle marked \(x\). (2)
