4MA0 Foundation June 2014 Paper 2 Q21

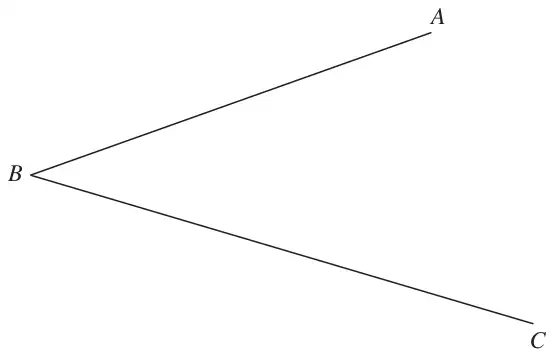

21 Use ruler and compasses to construct the bisector of angle \(ABC\).
You must show all your construction lines.
(2)
| Scheme | Marks |
|---|---|
| Arc centre B cutting BA and BC at P and Q where BP = BQ | M1 |
| correct bisector | A1 |
| (2) | |
| (2 marks) |
Notes
M1: for arcs within guidelines
A1: dep
